At Model

  1. Disconnect the cable from the M terminal.
    G16524630Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the magnet switch assembly.
    G16524631Courtesy of SUBARU OF AMERICA, INC.
  3. Using TORX® T25, remove the through bolts.
    G16524632Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the yoke assembly and starter cover as a unit.
    G16524633Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the starter cover and remove the drain duct (A) from the yoke assembly.
    G16524634Courtesy of SUBARU OF AMERICA, INC.

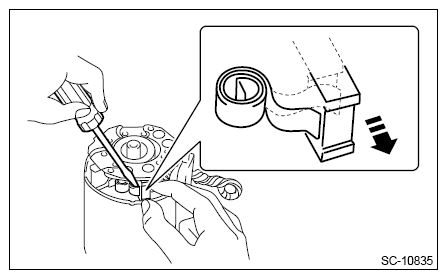

  6. Remove the brush holder assembly.
    1. Using a screwdriver, remove the spring from the brush bushing.
    2. Remove the 4 brushes from the brush holder assembly and remove the brush holder assembly from the yoke assembly.
    G16524635Courtesy of SUBARU OF AMERICA, INC.
  7. Separate the armature assembly and yoke assembly.
    G16524636Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the plate from the yoke assembly.
    G16524637Courtesy of SUBARU OF AMERICA, INC.

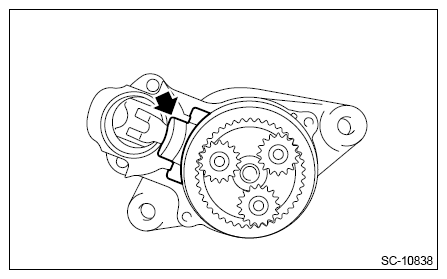

  9. Remove the seal rubber from the starter drive housing assembly.
    G16524638Courtesy of SUBARU OF AMERICA, INC.

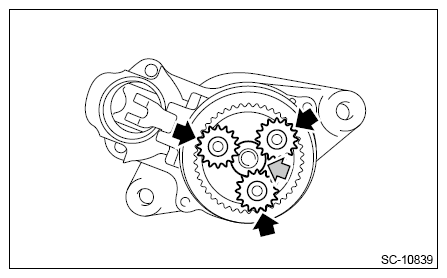

  10. Remove the pinion gear, and remove the pinion stopper washer.
G16524639Courtesy of SUBARU OF AMERICA, INC.
