Select Lever

Temporarily install the select lever.

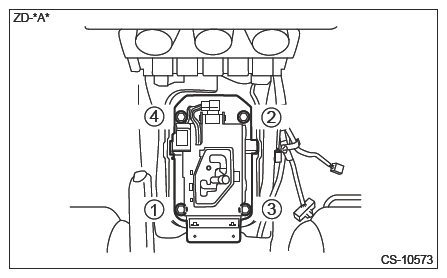

Tighten the bolts in the numerical order as shown in the figure.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 1: Select Lever Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Install the clip securing the harness.
Connect the connector.
Adjust the select lever. Ref. to CONTROL SYSTEMS>SELECT LEVER>ADJUSTMENT .
Install the cover center side and the console box assembly. Ref. to EXTERIOR/INTERIOR TRIM>CENTER CONSOLE>INSTALLATION .

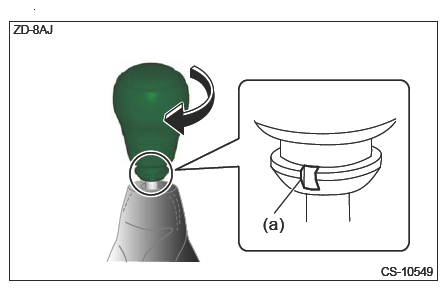

Install the grip by turning it clockwise.
NOTE:
- Tighten to the extent where the grip does not rotate during shift operation.
- Align the grip notch (a) toward the rear of the vehicle while turning in the tightening direction.
Courtesy of SUBARU OF AMERICA, INC.
Install the boot.

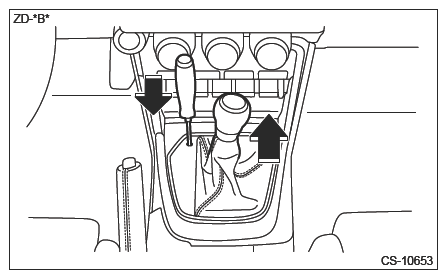

Release the shift lock using a screwdriver, etc. and shift the select lever to the "P range".

Courtesy of SUBARU OF AMERICA, INC.
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
