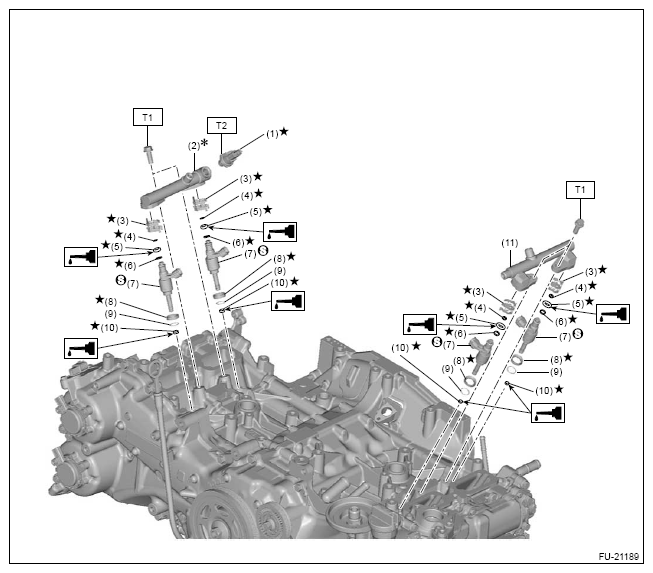

Fuel Injector
| (1) | Fuel pressure sensor |
| (2) | Fuel injector pipe RH |
| (3) | Fuel injector holder |
| (4) | Stopper ring |
| (5) | O-ring seal |
| (6) | Back-up ring |
| (7) | Fuel injector |
| (8) | Slider washer |
| (9) | C-ring |
| (10) | Fuel injector seal |
| (11) | Fuel injector pipe LH |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 19 (1.9, 14.0)
T2: 46 (4.7, 33.9)
*When removing the fuel pressure sensor from the fuel injector pipe RH, replace it with a new one .
