Rocker Cover

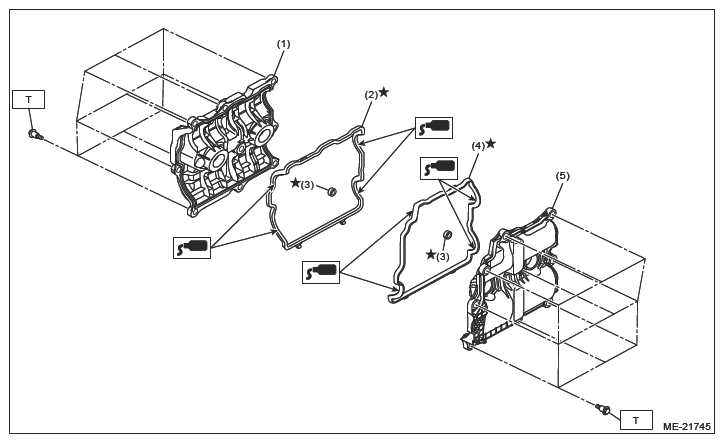

Fig 1: Rocker Cover Components Location
G16346065Courtesy of SUBARU
(1) Rocker cover RH
(2) Rocker cover gasket RH
(3) Rocker cover gasket
(4) Rocker cover gasket LH
(5) Rocker cover LH

Tightening torque: N.m (kgf-m, ft-lb)

T:  Ref. to MECHANICAL (H4DO)>ROCKER COVER>INSTALLATION .
