Stereo Camera

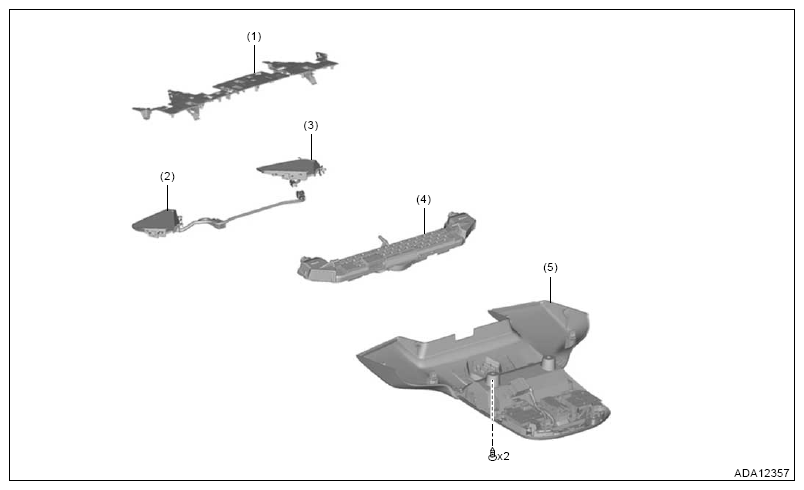

G16387673Courtesy of SUBARU OF AMERICA, INC.
(1) Camera bracket
(2) Lens hood ASSY LH
(3) Lens hood ASSY RH
(4) Stereo camera
(5) Cover ASSY stereo camera
NOTE: The camera bracket is integrated with the windshield glass.
