Outback Model

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the bumper face front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL .

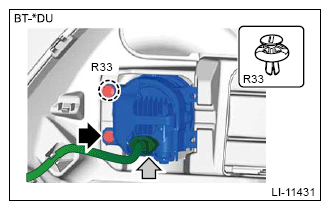

  3. Remove the fog light assembly front.
    1. Disconnect the connector.
    2. Remove the bolt and clip.
    3. Remove the fog light assembly front from the guide.
G16385937Courtesy of SUBARU OF AMERICA, INC.
