Check Door Lock Switch

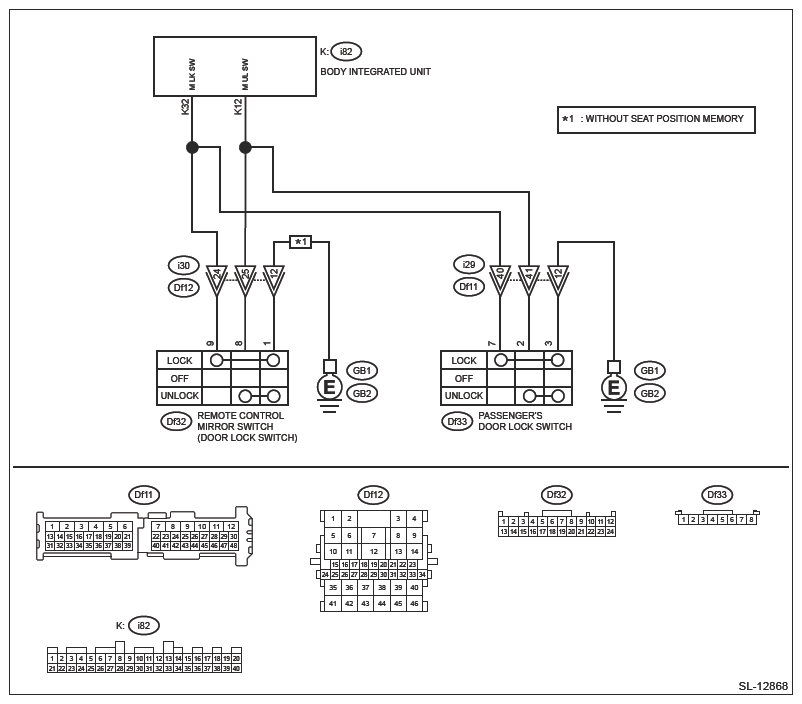

Wiring diagram:

Door lock control system Ref. to WIRING SYSTEM>DOOR LOCK CONTROL SYSTEM>WIRING DIAGRAM .

Courtesy of SUBARU OF AMERICA, INC.

1. CHECK DATA MONITOR  .

   Display the [Manual lock SW input] data using Subaru Select Monitor. Ref. to BODY CONTROL (DIAGNOSTICS)>DATA MONITOR .

   Does the display change as [OFF] ←→ [ON] when each door lock switch is moved to LOCK?

   Yes:  Go to  2.

   No:  Go to  3.

2. CHECK DATA MONITOR  .

   Using Subaru Select Monitor, display the data of [Manual unlock SW input]. Ref. to BODY CONTROL (DIAGNOSTICS)>DATA MONITOR .

   Does the display change as [OFF] ←→ [ON] when each door lock switch is moved to UNLOCK?

   Yes:  The door lock switch is OK.

   No:  Go to  4.

3. CHECK DOOR LOCK SWITCH  .
   1. Disconnect each door lock switch (driver's and passenger's seats) connector.
   2. Check the continuity between terminals when moving each door lock switch (driver's and passenger's seats) in LOCK direction.

      Connector & terminal

      Driver's side

      (Df32) No. 9 - (Df32) No. 1:

      Passenger's side

      (Df33) No. 7 - (Df33) No. 3:

   Did the indicator change from "No continuity" (1 MΩ or more) to "Continuity exists" (less than 10 Ω)?

   Yes:  Go to  4.

   No:  Replace the power window main switch or switch power window sub front. Ref. to GLASS/WINDOWS/MIRRORS>POWER WINDOW CONTROL SWITCH .

4. CHECK DOOR LOCK SWITCH  .

   Check the continuity between terminals when moving each door lock switch (driver's and passenger's seats) in UNLOCK direction.

   Connector & terminal

   Driver's side

   (Df32) No. 8 - (Df32) No. 1:

   Passenger's side

   (Df33) No. 2 - (Df33) No. 3:

   Did the indicator change from "No continuity" (1 MΩ or more) to "Continuity exists" (less than 10 Ω)?

   Yes:  Go to  5.

   No:  Replace the power window main switch or switch power window sub front. Ref. to GLASS/WINDOWS/MIRRORS>POWER WINDOW CONTROL SWITCH .

5. CHECK HARNESS  .

   Measure the resistance between each door lock switch (driver's and passenger's seats) connector and chassis ground.

   Connector & terminal

   Driver's side

   (Df32) No. 1 - Chassis ground:

   Passenger's side

   (Df33) No. 3 - Chassis ground:

   Is the resistance less than 10 Ω?

   Yes:  Go to  6.

   No:  Repair or replace the harness.

6. CHECK HARNESS  .

   Check the harness between body integrated unit and each door lock switch (driver's and passenger's seats).

   Connector & terminal

   Driver's side

   (Df32) No. 9 - (i82) No. 32:

   (Df32) No. 8 - (i82) No. 12:

   Passenger's side

   (Df33) No. 7 - (i82) No. 32:

   (Df33) No. 2 - (i82) No. 12:

   Is harness normal?

   Yes:  Replace the body integrated unit. Ref. to BODY CONTROL/COMMUNICATION SYSTEM>BODY INTEGRATED UNIT .

   No:  Repair or replace the harness.
