Check Rear Gate Opener Button Circuit

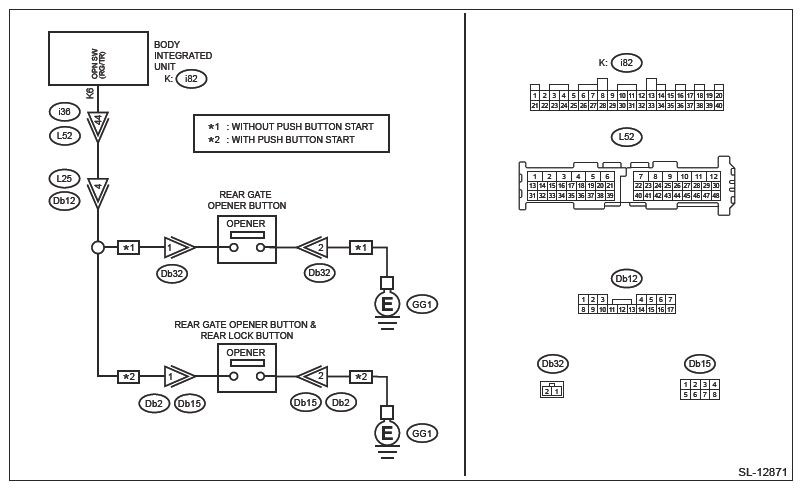

Wiring diagram:

Door lock control system Ref. to WIRING SYSTEM>DOOR LOCK CONTROL SYSTEM>WIRING DIAGRAM .

Courtesy of SUBARU OF AMERICA, INC.

1. CHECK DATA MONITOR  .

   Display the [R Gate Release SW input] data using Subaru Select Monitor. Ref. to BODY CONTROL (DIAGNOSTICS)>DATA MONITOR>OPERATION .

   Does the display change to [OFF] ←→ [ON], when the rear gate opener button is operated?

   Yes:  Rear gate opener button is normal.

   No:  Go to  2.

2. CHECK HARNESS  .
   1. Disconnect the connectors of body integrated unit and rear gate opener button.
   2. Check the harness between the body integrated unit and rear gate opener button.

      Connector & terminal

      Model without keyless access with push button start

      (i82) No. 6 - (Db32) No. 1:

      Model with keyless access with push button start

      (i82) No. 6 - (Db2) No. 1:

   Is harness normal?

   Yes:  Go to  3.

   No:  Repair or replace the harness.

3. CHECK HARNESS  .

   Measure the resistance between the rear gate opener button connector and chassis ground.

   Connector & terminal

   Model without keyless access with push button start

   (Db32) No. 2 - Chassis ground:

   Model with keyless access with push button start

   (Db2) No. 2 - Chassis ground:

   Is the resistance less than 10 Ω?

   Yes:  Go to  4.

   No:  Repair or replace the harness.

4. CHECK REAR GATE OPENER BUTTON  .

   Measure the resistance between terminals both when the rear gate opener button is pressed and when not pressed.

   Terminals

   No. 1 - No. 2:

   Is the resistance less than 10 Ω when the switch is pressed and 1 MΩ or more when not pressed?

   Yes:  Replace the body integrated unit. Ref. to BODY CONTROL/COMMUNICATION SYSTEM>BODY INTEGRATED UNIT .

   No:  Replace the rear gate opener button. Ref. to SECURITY AND LOCKS>REAR GATE OPENER BUTTON .
