Door Lock Assembly

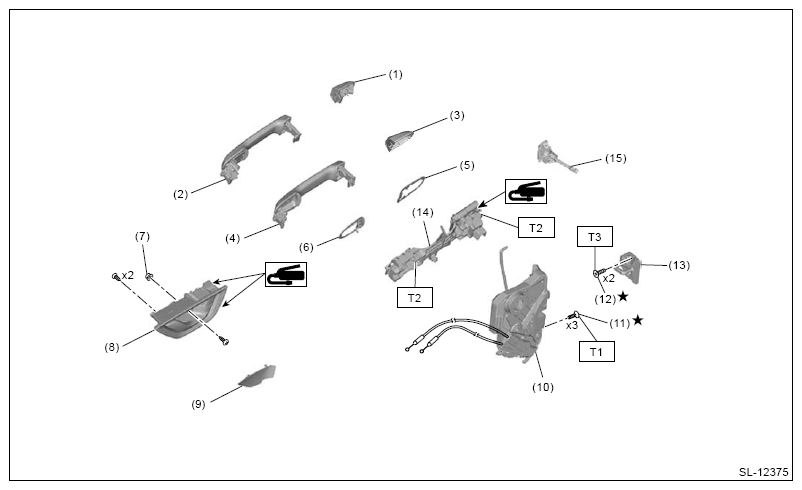

• Front

  Courtesy of SUBARU OF AMERICA, INC.

  (1)	Cover handle front outer (passenger's side)
  (2)	Handle front door outer (model with keyless access with push button start)
  (3)	Cover handle front outer (driver's side)
  (4)	Handle front door outer (model without keyless access with push button start)
  (5)	Spacer door handle outer B
  (6)	Spacer door handle outer A
  (7)	Grommet screw
  (8)	Remote ASSY door
  (9)	Cap remote
  (10)	Latch & actuator ASSY front
  (11)	TORX® bolt
  (12)	Screw
  (13)	Striker door
  (14)	Frame ASSY front door outer
  (15)	Key cylinder (driver's side)

  Tightening torque: N.m (kgf-m, ft-lb)

  T1: 6.5 (0.7, 4.8)

  T2: 7.5 (0.8, 5.5)

  T3: 18 (1.8, 13.3)

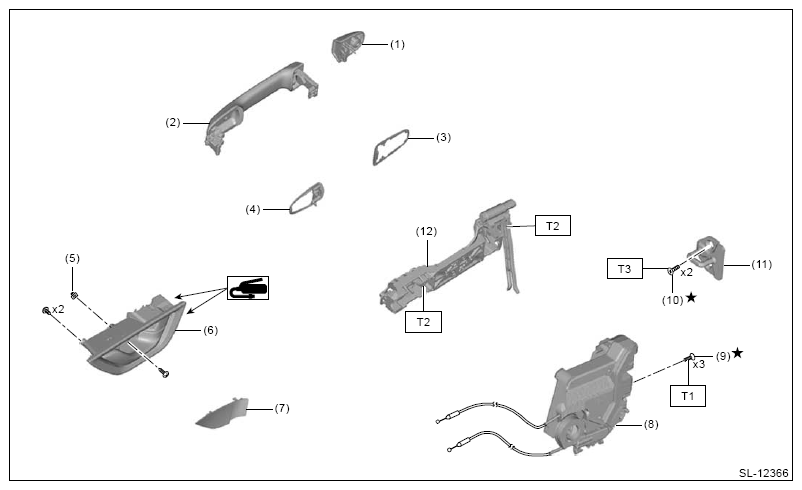

• Rear

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.5 (0.7, 4.8)

T2: 7.5 (0.8, 5.5)

T3: 18 (1.8, 13.3)
