Front Hood Lock

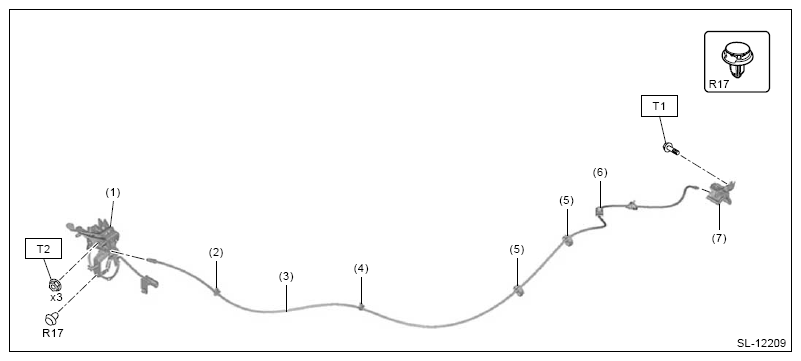

G16386535Courtesy of SUBARU OF AMERICA, INC.
(1) Lock ASSY front hood
(2) Clip
(3) Cable ASSY front hood
(4) Clip
(5) Clip
(6) Clamp
(7) Opener handle

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 33 (3.4, 24.3)
