Rear Gate Lock

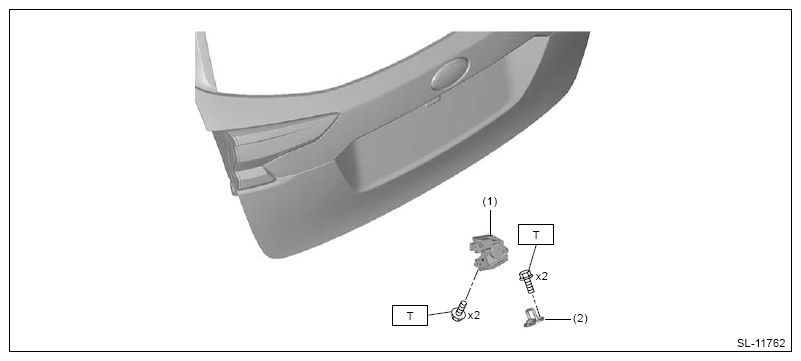

G16386534Courtesy of SUBARU OF AMERICA, INC.
(1) Latch and actuator rear gate
(2) Striker rear gate

Tightening torque: N.m (kgf-m, ft-lb)

T: 25 (2.5, 18.4)
