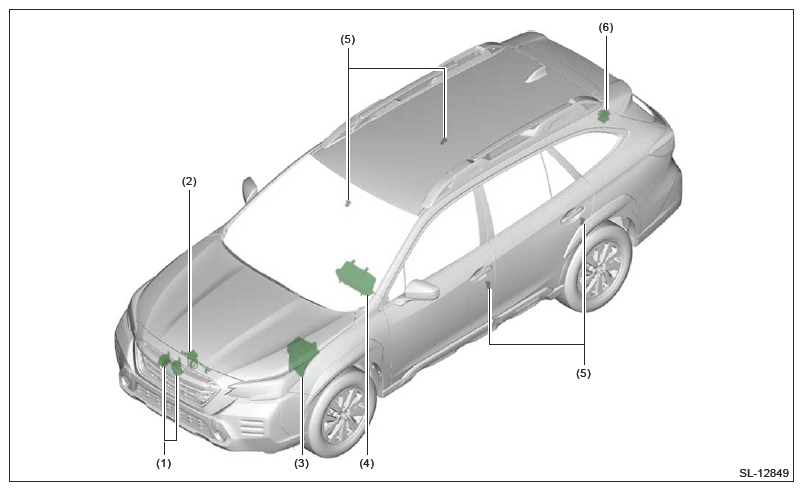

Outback Model
| (1) | Horn |
| (2) | Hood switch |
| (3) | Horn relay (in main fuse box) |
| (4) | Security indicator light (in combination meter) |
| (5) | Door switch |
| (6) | Rear gate latch switch |
NOTE:
For the location of hazard lights, refer to "General Description" in "LIGHTING SYSTEM" Service Information. Ref. to LIGHTING SYSTEM>GENERAL DESCRIPTION>SPECIFICATION>OUTBACK MODEL
.
