Sedan Model

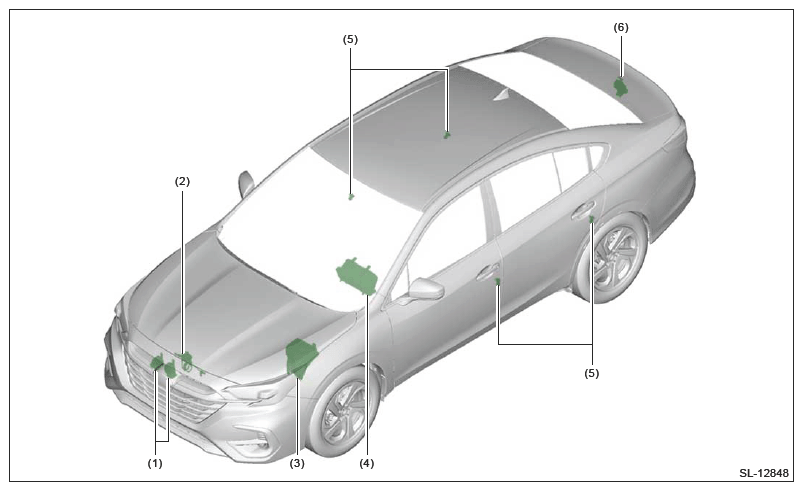

G16386529Courtesy of SUBARU OF AMERICA, INC.
(1) Horn
(2) Hood switch
(3) Horn relay (in main fuse box)
(4) Security indicator light (in combination meter)
(5) Door switch
(6) Trunk lid latch switch
NOTE: For the location of hazard lights, refer to "General Description" in "LIGHTING SYSTEM" Service Information. Ref. to LIGHTING SYSTEM>GENERAL DESCRIPTION>SPECIFICATION>SEDAN MODEL .
