Ignition Key Lock: Replacement

CAUTION:

Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
Do not allow harness and connectors to interfere or get tangled up with other parts.
If the steering wheel and steering angle sensor (steering roll connector) are removed, perform "VSC (VDC) Centering Mode" of the VDC. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>VDC CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VDCCM & H/U)>ADJUSTMENT>VDC SENSOR MIDPOINT SETTING MODE .

Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Remove the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .
Remove the knee airbag module. Ref. to AIRBAG SYSTEM>KNEE AIRBAG MODULE>REMOVAL .
Remove the steering wheel assembly. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>STEERING WHEEL>REMOVAL .
Remove the column assembly steering. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>STEERING COLUMN>REMOVAL .

Remove the ignition key lock.

Secure the column assembly steering in a vise.

Use the reverse tap and drill to remove the set bolt and remove the ignition key lock.

Courtesy of SUBARU OF AMERICA, INC.

Install the ignition key lock.

Secure the ignition key lock to the column assembly steering.

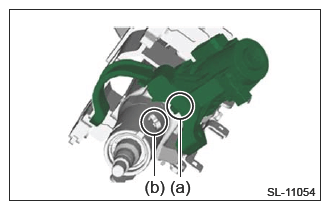

NOTE: When installing the ignition key lock, confirm that the fitting portion of the ignition key lock is properly engaged with the opening portion of the column shaft.

Courtesy of SUBARU OF AMERICA, INC.

(a)	Fitting portion
(b)	Opening portion

Use new set bolts. Tighten the bolt until the bolt head is broken (bolt head wrenched off).

Install the column assembly steering. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>STEERING COLUMN>INSTALLATION .
Install the steering wheel assembly. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>STEERING WHEEL>INSTALLATION .
Install the knee airbag module. Ref. to AIRBAG SYSTEM>KNEE AIRBAG MODULE>INSTALLATION .
Install the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
