Rear Window Defogger System: Repair

  1. Clean the broken portion with alcohol or appropriate cleaning solvent.
  2. Mask both side of wire with masking tape.
  3. Apply the repairing material to the broken portion.

    Preparation items:

    Repairing material: DUPONT No. 4817 or equivalent

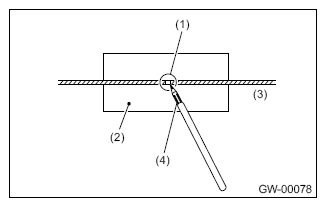

    G16343653Courtesy of SUBARU OF AMERICA, INC.
    (1) Broken portion
    (2) Masking tape
    (3) Broken wire
    (4) Conductive silver composition
  4. After repair, check the wire.
