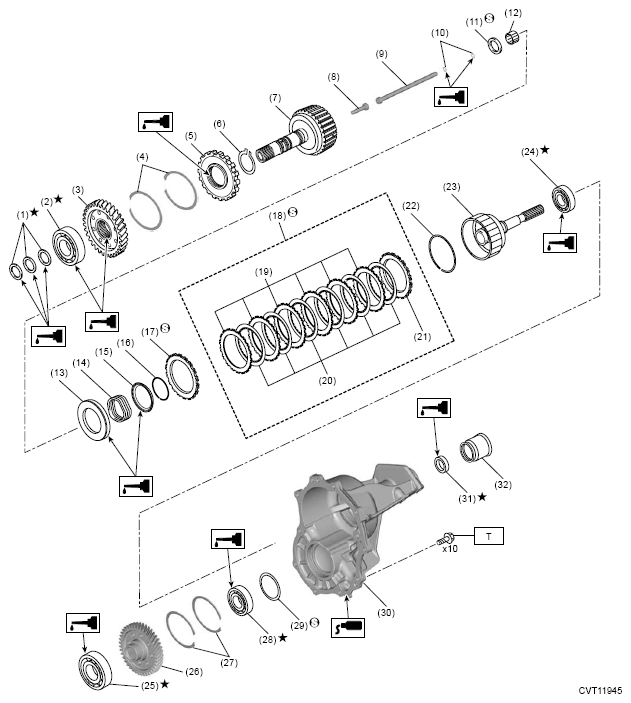

Transfer And Extension Case
WARNING: This page is about a different variant/trim than selected.
| (1) | Seal ring |
| (2) | Ball bearing |
| (3) | Transfer drive gear |
| (4) | Snap ring |
| (5) | Parking gear |
| (6) | Snap ring |
| (7) | Reduction drive gear shaft |
| (8) | Oil separate pipe |
| (9) | Oil pipe |
| (10) | O-ring |
| (11) | Thrust bearing |
| (12) | Needle bearing |
| (13) | Transfer clutch piston |
| (14) | Return spring |
| (15) | Transfer clutch piston seal |
| (16) | Snap ring |
| (17) | Pressure plate |
| (18) | Transfer clutch plate set |
| (19) | Driven plate |
| (20) | Drive plate |
| (21) | Pressure plate |
| (22) | Snap ring |
| (23) | Rear drive shaft |
| (24) | Ball bearing |
| (25) | Ball bearing |
| (26) | Transfer reduction driven gear |
| (27) | Snap ring |
| (28) | Ball bearing |
| (29) | Transfer reduction driven gear shim |
| (30) | Extension case |
| (31) | Oil seal |
| (32) | Dust cover |
Tightening torque: N.m (kgf-m, ft-lb)
T: 25 (2.5, 18.4)
