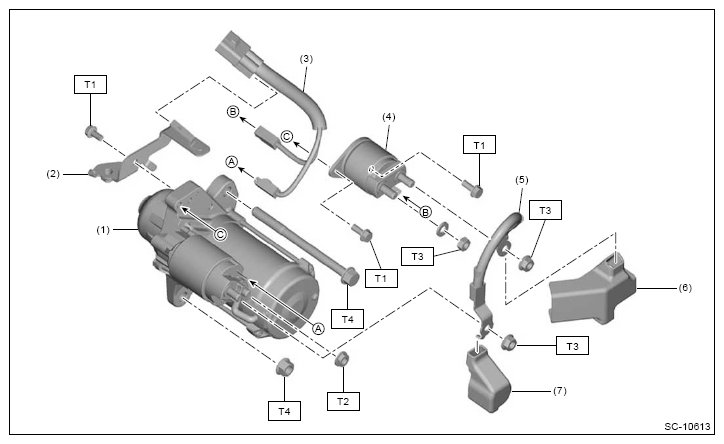

Components With Torque Specifications: Starter
WARNING: This page is about a different variant/trim than selected.
Courtesy of SUBARU OF AMERICA, INC.
| (1) |
Starter |
| (2) |
Cable stay |
| (3) |
Adapter harness |
| (4) |
ICR relay |
| (5) |
Motor cable |
| (6) |
Cap |
| (7) |
Cap |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6.4 (0.7, 4.7)
T2: 10 (1.0, 7.4)
T3: 11 (1.1, 8.1)
T4: 50 (5.1, 36.9)
