Components With Torque Specifications: Plate

WARNING: This page is about a different variant/trim than selected.

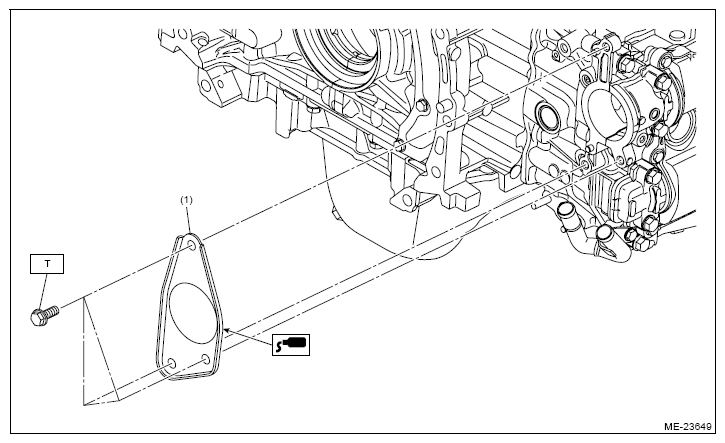

Fig 1: Plate Component Location
G16384530Courtesy of SUBARU OF AMERICA, INC.
(1) Plate

Tightening torque: N.m (kgf-m, ft-lb)

T: 16 (1.6, 11.8)
