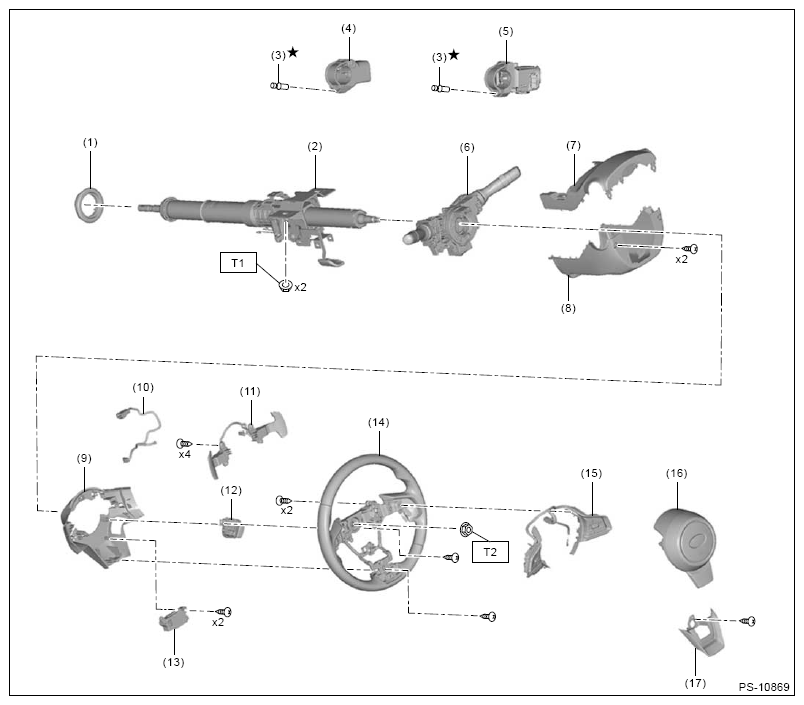

Steering Wheel And Column
| (1) | Bushing |
| (2) | Column ASSY steering |
| (3) | Set bolt |
| (4) | Steering lock Control Module (model with keyless access with push button start) |
| (5) | Ignition key lock (model without keyless access with push button start) |
| (6) | Switch ASSY combination (with steering roll connector) |
| (7) | Column cover UPR |
| (8) | Column cover LWR |
| (9) | Cover steering wheel LWR |
| (10) | Adapter cord (model with steering heater) |
| (11) | Paddle shift switch ASSY |
| (12) | Steering heater switch (model with steering heater) |
| (13) | Steering Control Module (model with steering heater) |
| (14) | Steering wheel |
| (15) | Satellite switch |
| (16) | Driver's airbag module |
| (17) | Cover spoke |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 20 (2.0, 14.8)
T2: 39 (4.0, 28.8)
