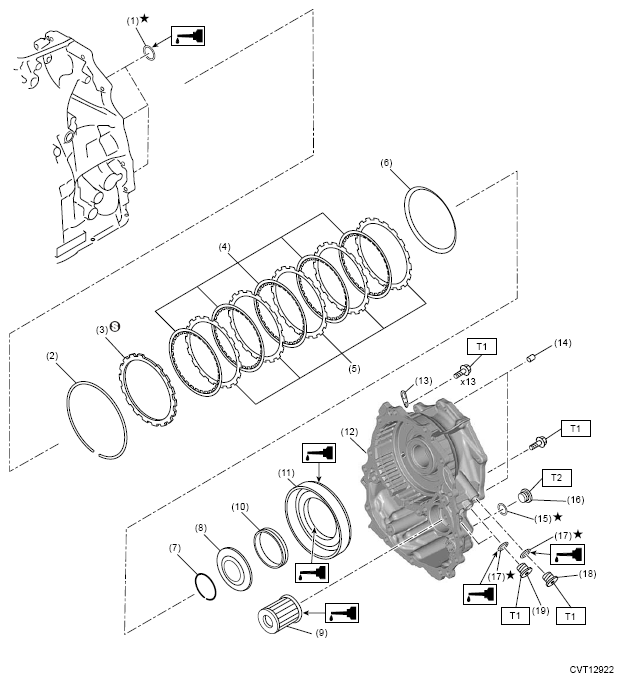

Reverse Brake And Intermediate Case
| (1) | O-ring |
| (2) | Snap ring |
| (3) | Retaining plate |
| (4) | Drive plate |
| (5) | Driven plate |
| (6) | Dish plate |
| (7) | Snap ring |
| (8) | Spring retainer |
| (9) | CVTF filter |
| (10) | Return spring |
| (11) | Reverse brake piston |
| (12) | Intermediate case |
| (13) | Transmission hanger |
| (14) | Straight pin |
| (15) | Gasket |
| (16) | Filler plug |
| (17) | O-ring |
| (18) | Test plug (transfer clutch pressure) |
| (19) | Plug |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 25 (2.5, 18.4)
T2: 50 (5.1, 36.9)
