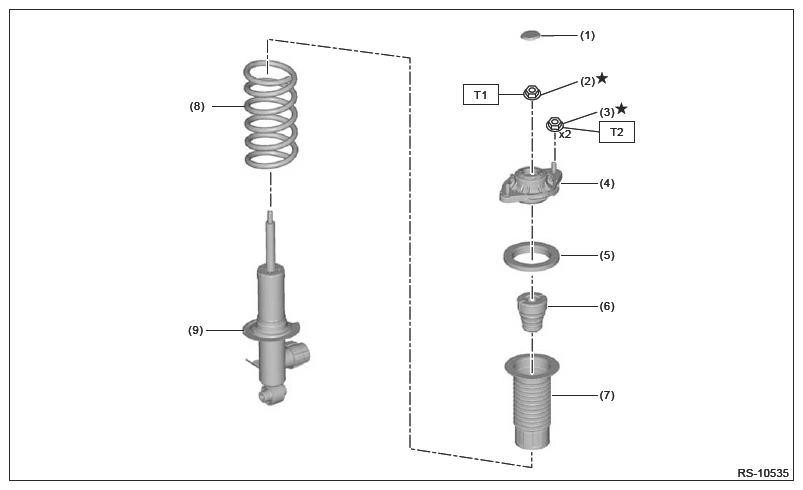

Electronically-Controlled Damper Model
Courtesy of SUBARU OF AMERICA, INC.
| (1) |
Plug |
| (2) |
Self-locking nut |
| (3) |
Flange nut |
| (4) |
Mount shock absorber rear |
| (5) |
Rubber seat UPR |
| (6) |
Helper rear |
| (7) |
Dust cover rear |
| (8) |
Coil spring rear |
| (9) |
Shock absorber COMPL rear |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 25 (2.5, 18.4)
T2: 30 (3.1, 22.1)
