CENTRAL Gateway CM

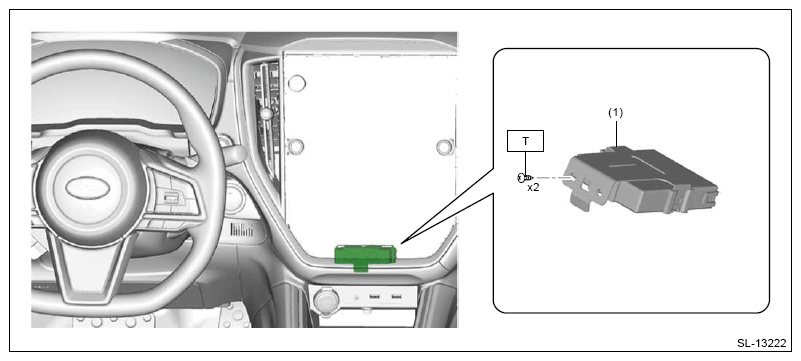

Fig 1: Central Gateway CM Components Location
G16541193Courtesy of SUBARU OF AMERICA, INC.
(1) Central gateway control module

Tightening torque: N.m (kgf-m, ft-lb)

T: 1.8 (0.2, 1.3)
