Cockpit Display: Disassembly

  1. Remove the center information display.

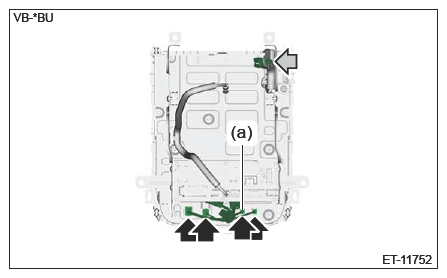

    1. Remove the connector clips, and disconnect each connector.
      G16540823Courtesy of SUBARU OF AMERICA, INC.
      (a) Model with 11.6-inch display
    2. Remove the screws and remove the center information display.
      G14612494Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the switch hazard. Ref. to LIGHTING SYSTEM>HAZARD SWITCH>REMOVAL .

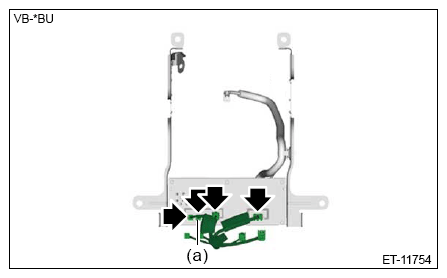

  3. Disconnect the connectors, and remove the cord assembly CCM.
    G16540825Courtesy of SUBARU OF AMERICA, INC.
    (a) Model with 11.6-inch display
  4. Remove the connector and cable clip and remove the cable CCM.
    G14612496Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the screws and remove the unit bracket from the cockpit control module.
    G14612497Courtesy of SUBARU OF AMERICA, INC.
