WRX Base, Standard Trans
>>
Repair and Diagnosis
>>
Body & Frame
>>
Seat System - Seats
>>
Power Seat System
>>
Inspection
>>
Note
>>
Motor Layout
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

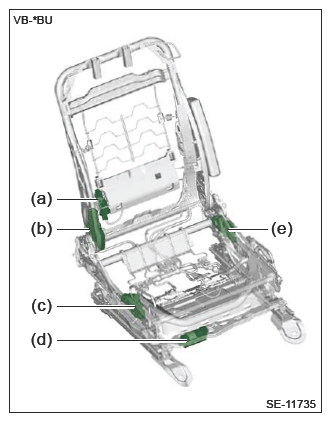

Motor Layout
Courtesy of SUBARU OF AMERICA, INC.
(a)
Lumbar motor
(c)
Tilt motor
(e)
Lifter motor
(b)
Reclining motor
(d)
Slide motor
