Section 30 (Engine Intake System (Induction)): Intercooler: Disassembly

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

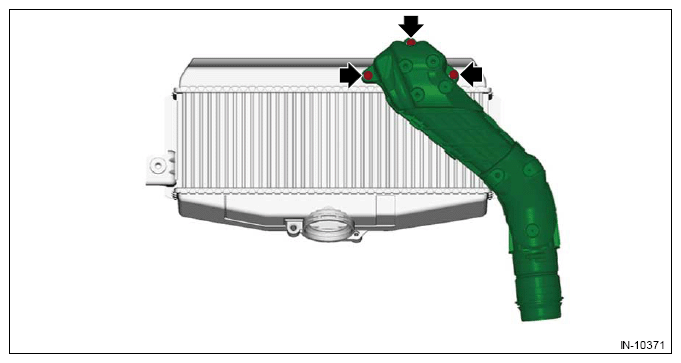

  1. Remove the intake duct No. 3.
    G13198600Courtesy of SUBARU OF AMERICA, INC.
