Standard Damper Model

  1. Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .

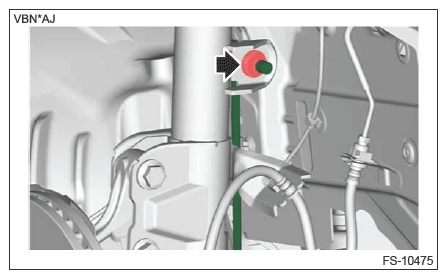

  2. Remove the nut and disconnect the stabilizer link front (upper part).
    G14601756Courtesy of SUBARU OF AMERICA, INC.

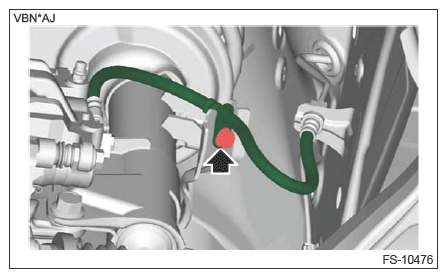

  3. Remove the bolt and then remove the brake hose bracket.
    G14601757Courtesy of SUBARU OF AMERICA, INC.

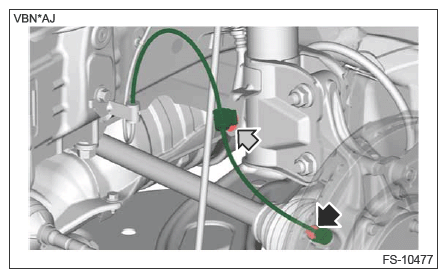

  4. Remove the bolt and harness clip, and remove the sensor sub assembly front.
    G14601758Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the strut assembly.

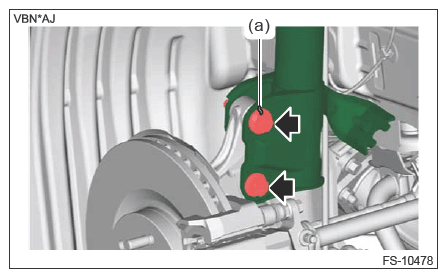

    1. Place an alignment mark (a) on the adjusting bolt and the strut assembly.
    2. Remove the adjusting bolts and flange bolts for the strut assembly.
      CAUTION: Turn and remove the nut while holding the bolt side.
      G14601759Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the nuts, and remove the strut assembly.
      G16538572Courtesy of SUBARU OF AMERICA, INC.
