Power Amplifier

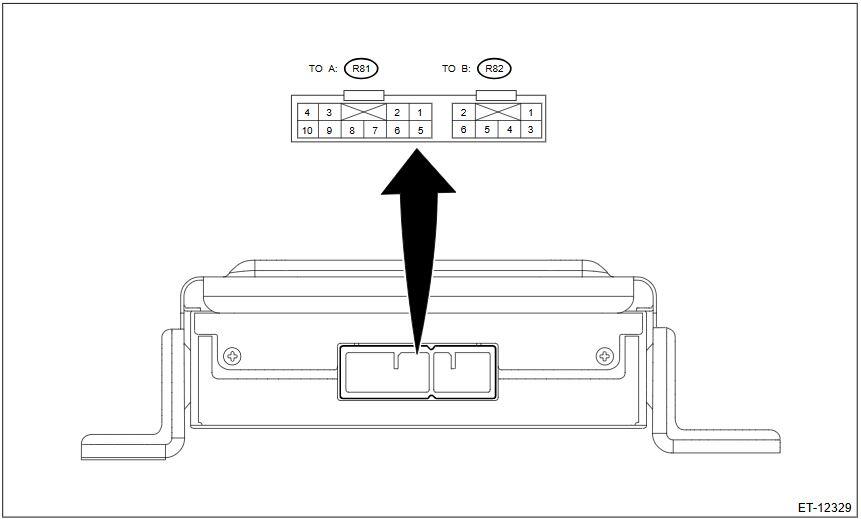

G00631281Courtesy of SUBARU OF AMERICA, INC.
Terminal No.  Contents  Measuring condition  Standard
(R81) No. 1 LH front door speaker (+)
(R81) No. 2 RH front door speaker (+) - -
(R81) No. 3 LH side tweeter (+) - -
(R81) No. 4 RH side tweeter (+) - -
(R81) No. 5 LH front door speaker (-) - -
(R81) No. 6 RH front door speaker (-) - -
(R81) No. 7 - - -
(R81) No. 8 Amplifier ON signal - -
(R81) No. 9 LH side tweeter (-) - -
(R81) No. 10 RH side tweeter (-) - -
(R82) No. 1 ↔ Chassis ground Battery power supply Always Battery voltage
(R82) No. 2 ↔ Chassis ground Ground Always 0 V
(R82) No. 3 - - -
(R82) No. 4 - - -
(R82) No. 5 - - -
(R82) No. 6 - - -
