Battery Cable Assembly: Installation

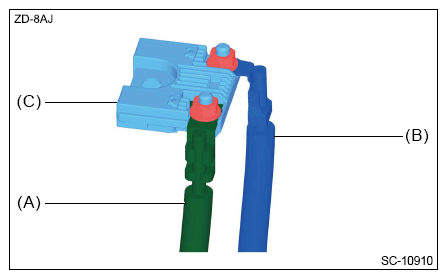

Connect the terminal (B) and the terminal (A) to the slow blow fuse (C).
Tightening torque:

5.5 N.m (0.6 kgf-m, 4.1 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the terminal base.
Tightening torque:

6 N.m (0.6 kgf-m, 4.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the bracket (B) and bracket (A) to the battery cable assembly.

Courtesy of SUBARU OF AMERICA, INC.
Set the battery cable assembly and secure it with the clip (C).

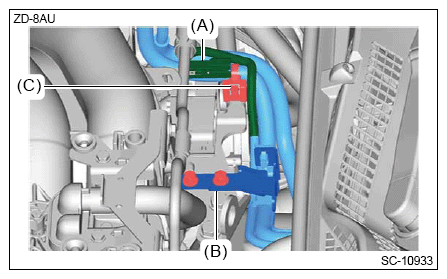

Install the bracket (B) and connector (A) to the engine rear hanger.
Tightening torque:

10 N.m (1.0 kgf-m, 7.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

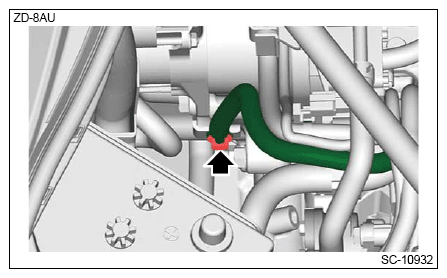

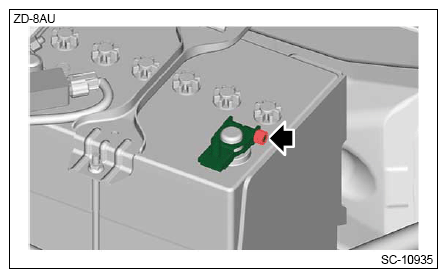

Connect the ground terminal.
Tightening torque:

14 N.m (1.4 kgf-m, 10.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

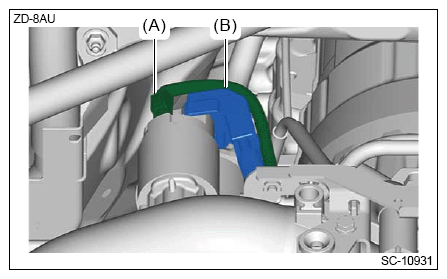

Connect the terminal B (B) and connector (A).
Tightening torque:

11 N.m (1.1 kgf-m, 8.1 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

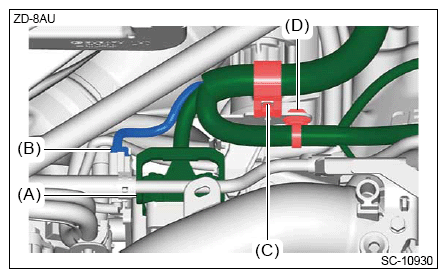

Secure the bulkhead wiring harness with clip (D) and clip (C), and connect connector (B) and connector (A).

Courtesy of SUBARU OF AMERICA, INC.
Install the collector cover. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>COLLECTOR COVER>INSTALLATION .
Secure the battery cable assembly with the clip and install the bracket.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

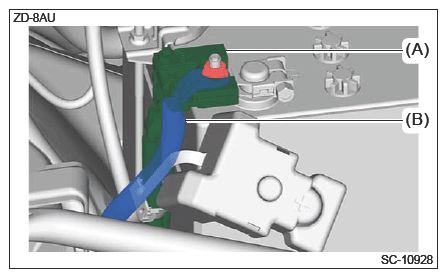

Set the terminal (B) to the terminal base, and connect the slow blow fuse (A).
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

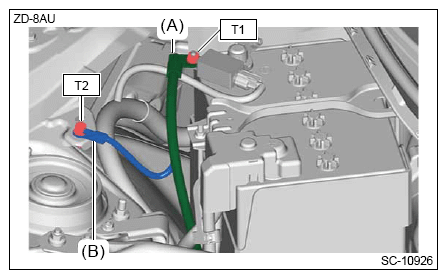

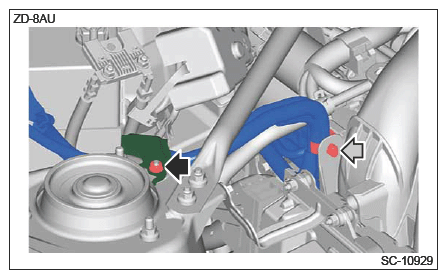

Connect the ground terminal (B) and ground terminal (A).
Tightening torque:

T1: 7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

T2: 13 N.m (1.3 kgf-m, 9.6 ft-lb)

Fig 1: Ground Terminal Bolts With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
