Components With Torque Specifications: Starter

• AT model

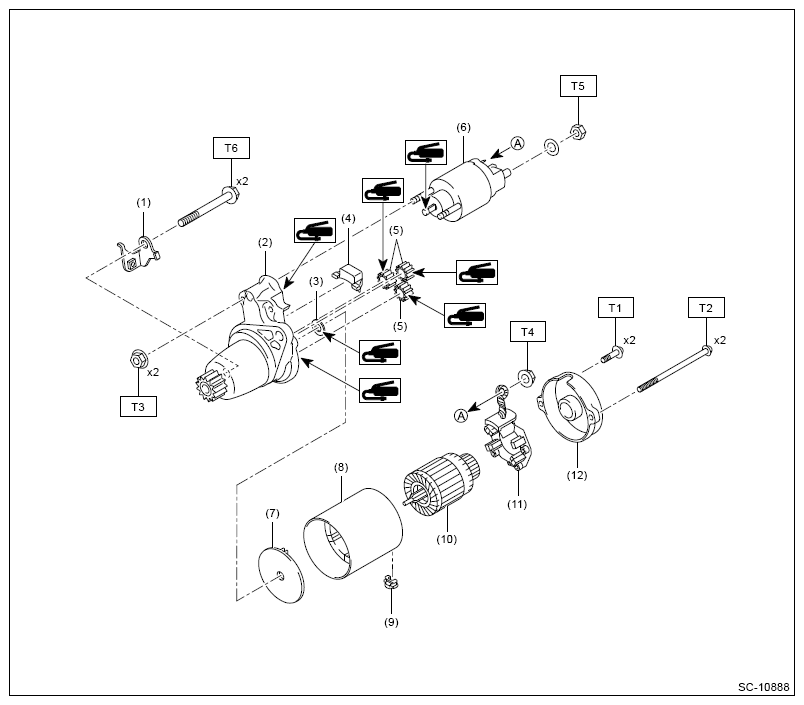

  Fig 1: Starter Components Location (AT Model)

  Courtesy of SUBARU OF AMERICA, INC.

  (1)	Cable stay
  (2)	Starter drive housing ASSY
  (3)	Pinion stop washer
  (4)	Seal rubber
  (5)	Pinion gear
  (6)	Magnet switch ASSY
  (7)	Plate
  (8)	Yoke ASSY
  (9)	Drain duct
  (10)	Armature ASSY
  (11)	Brush holder ASSY
  (12)	Starter cover

  Tightening torque: N.m (kgf-m, ft-lb)

  T1: 1.5 (0.2, 1.1)

  T2: 6 (0.6, 4.4)

  T3: 7.5 (0.8, 5.5)

  T4: 10 (1.0, 7.4)

  T5: 11 (1.1, 8.1)

  T6: 50 (5.1, 36.9)

• MT model

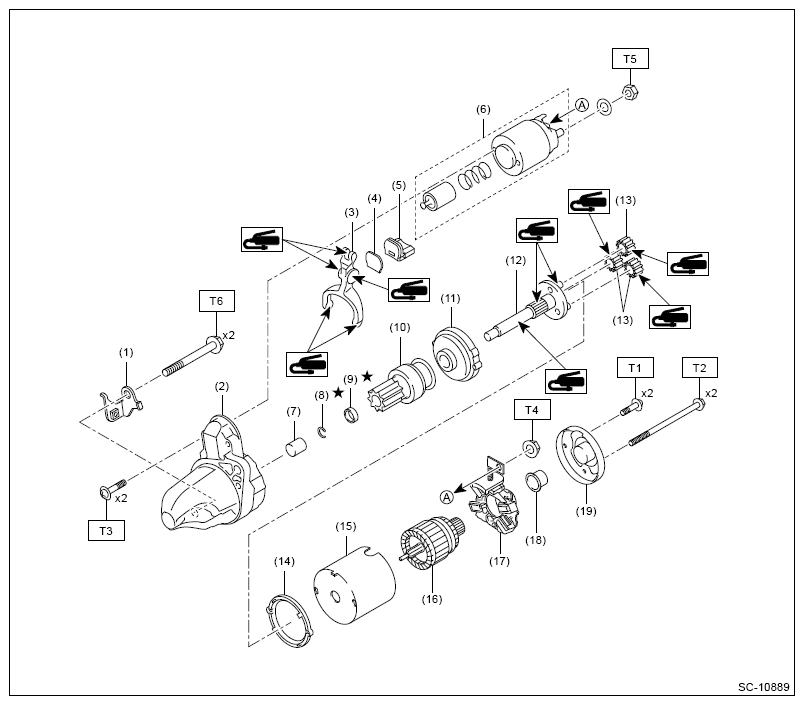

Fig 2: Starter Components Location (MT Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1.4 (0.1, 1.0)

T2: 6 (0.6, 4.4)

T3: 7.5 (0.8, 5.5)

T4: 10 (1.0, 7.4)

T5: 11 (1.1, 8.1)

T6: 50 (5.1, 36.9)
