Engine Starting System & Charging System: Generator: Installation

Install the generator bracket.
1. Set the generator bracket to the cylinder block RH, and temporarily tighten the bolts which secure the generator bracket.
2. Tighten the bolts in the numerical order as shown in the figure.
  Tightening torque:

  36 N.m (3.7 kgf-m, 26.6 ft-lb)

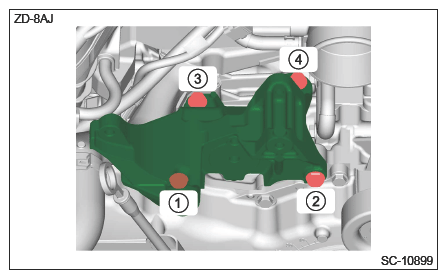

  Fig 1: Generator Bracket Bolts Tightening Sequence
  Courtesy of SUBARU OF AMERICA, INC.
3. Install the V-belt tensioner assembly. Ref. to MECHANICAL (H4DO)>V-BELT>INSTALLATION>V-BELT TENSIONER ASSEMBLY .
Set the generator to the generator bracket, and temporarily tighten the bolts which secure the generator.
Tighten the bolts in the numerical order as shown in the figure.
Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

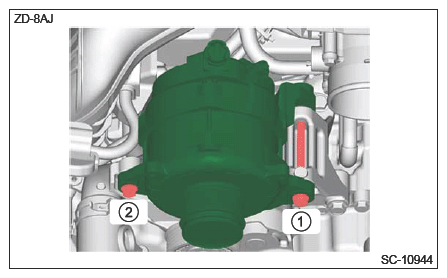

Fig 2: Generator Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.

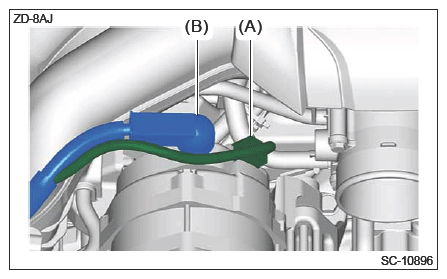

Connect the terminal B (B) and connector (A).
Tightening torque:

15.5 N.m (1.6 kgf-m, 11.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the V-belts. Ref. to MECHANICAL (H4DO)>V-BELT>INSTALLATION>V-BELT .
Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE BOOT>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
