Engine Starting System & Charging System: Generator: Removal

1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
2. Perform the steps below to remove the air intake boot, and place it aside so that it does not interfere with the work.
   CAUTION: Do not disconnect the PCV hose No. 2 (a).
   1. Remove the air cleaner case. Ref. to INTAKE (INDUCTION) (H4DO)>AIR CLEANER CASE>REMOVAL .
   2. Loosen the clamp, remove the air intake boot, and place it aside so that it does not interfere with the work.
   CAUTION: Be careful not to pull out the PCV hose No. 2 (a).

   Courtesy of SUBARU OF AMERICA, INC.

3. Remove the V-belts. Ref. to MECHANICAL (H4DO)>V-BELT>REMOVAL>V-BELT .
4. Disconnect the connector (A) and terminal B (B).

   Courtesy of SUBARU OF AMERICA, INC.

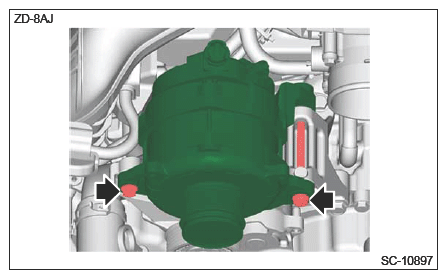

5. Remove the generator.

   Courtesy of SUBARU OF AMERICA, INC.

6. Remove the generator bracket.
   NOTE: Perform this procedure only when required.
   1. Remove the V-belt tensioner assembly. Ref. to MECHANICAL (H4DO)>V-BELT>REMOVAL>V-BELT TENSIONER ASSEMBLY .

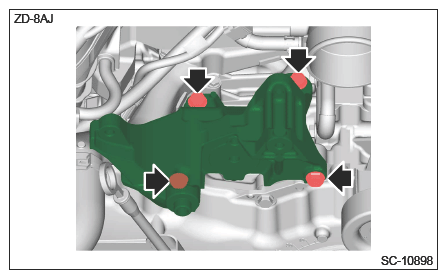

   2. Remove the generator bracket.

Courtesy of SUBARU OF AMERICA, INC.
