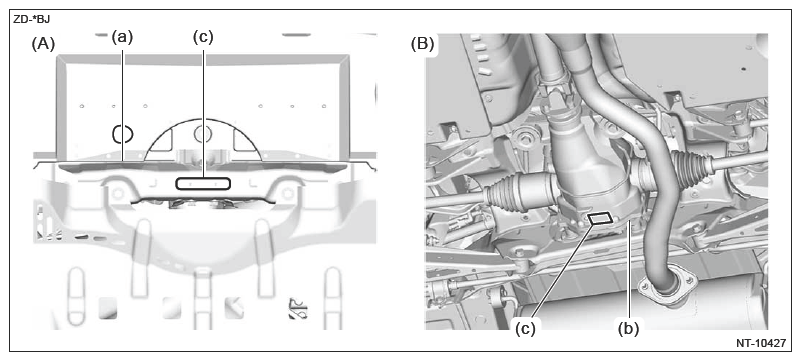

Jack-Up Point (When Using A Garage Jack)
CAUTION:
If jacking up the front side of the vehicle, make sure that the jack is attached at the center of the frame, not at the end.
 Courtesy of SUBARU OF AMERICA, INC.
|
| (A) |
Front |
| (B) |
Rear |
| (a) |
Frame |
| (b) |
Rear differential |
| (c) |
Jack-up point |
