Transmission Control Module (TCM): Installation

CAUTION: When the TCM has been replaced, be sure to perform the module registration.

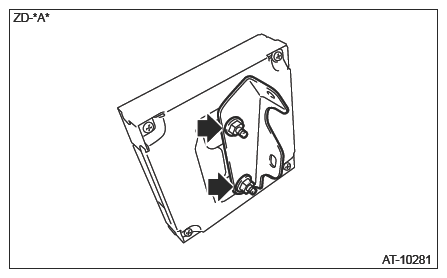

Attach the bracket.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

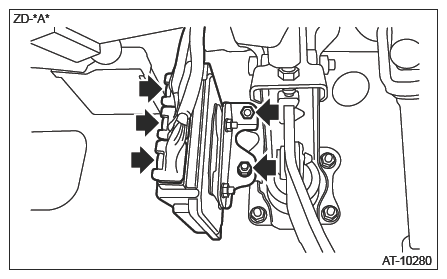

Install the TCM, and connect the connector.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the cover LWR driver OUT. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
When the TCM has been replaced, perform the module registration. Ref. to COMMON (DIAGNOSTICS)>UNIT REGISTRATION>OPERATION .
Perform the [Clear AT learning value] using Subaru Select Monitor. Ref. to TRANSMISSION (DIAGNOSTICS)>WORK SUPPORT>LIST>CLEAR THE AT LEARNED INFORMATION .
