Magnet Switch

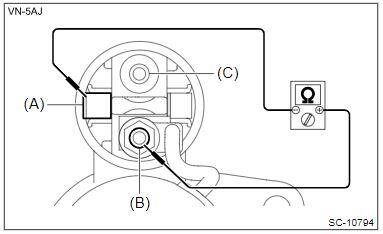

Using a circuit tester, check there is continuity between S terminal and M terminal, and between S terminal and ground.
Also, check that there is no continuity between M terminal and B terminal.
| (A) | Terminal S |
| (B) | Terminal M |
| (C) | Terminal B |
| Terminals | Standard |
|---|---|
| Terminal S - terminal M | 1 Ω or less |
| Terminal S - Ground | 1 Ω or less |
| Terminal M - terminal B | 1 MΩ or more |
