Stabilizer Bushing

  1. Lift up the vehicle.
  2. Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
  3. Remove the clamp stabilizer on the left and right sides.

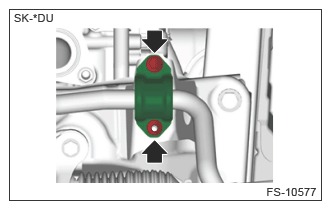

    • Except for WILDERNESS model
      G14384637Courtesy of SUBARU OF AMERICA, INC.
    • WILDERNESS model
    NOTE: The left and right clamp stabilizers of WILDERNESS model differ in shape.
    G14384638Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the bushing stabilizer front.
