Engine Mounting

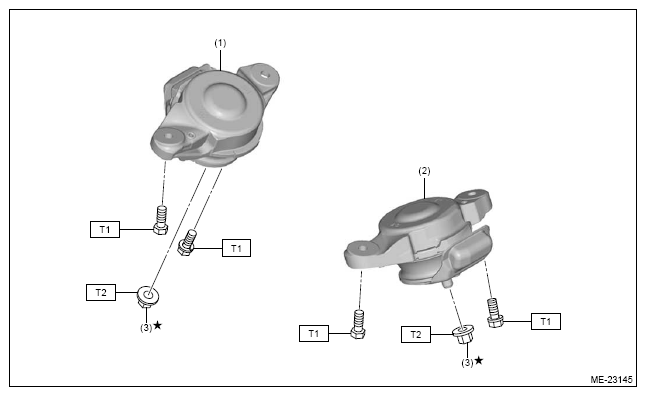

Fig 1: Engine Mounting Components Location
G16760972Courtesy of SUBARU OF AMERICA, INC.
(1)  Front cushion rubber RH
(2)  Front cushion rubber LH
(3)  Nut

Tightening torque: N.m (kgf-m, ft-lb)

T1: 35 (3.6, 25.8)

T2: 90 (9.2, 66.4)
