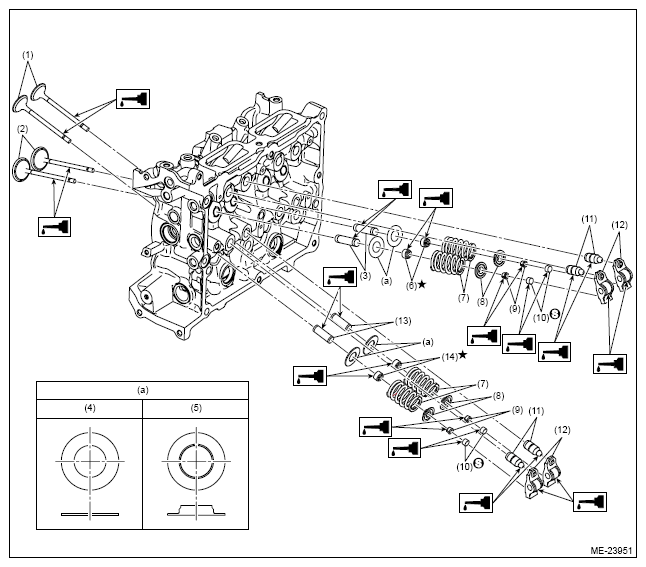

Valve Assembly
| (1) | Exhaust valve |
| (2) | Intake valve |
| (3) | Intake valve guide |
| (4) | Valve spring seat (2.0 L model) |
| (5) | Valve spring seat (2.5 L model) |
| (6) | Intake valve oil seal |
| (7) | Valve spring |
| (8) | Valve spring retainer |
| (9) | Valve collet |
| (10) | Valve shim |
| (11) | Roller rocker arm pivot |
| (12) | Roller rocker arm |
| (13) | Exhaust valve guide |
| (14) | Exhaust valve oil seal |
