Radiator Fan Control Module (Main)

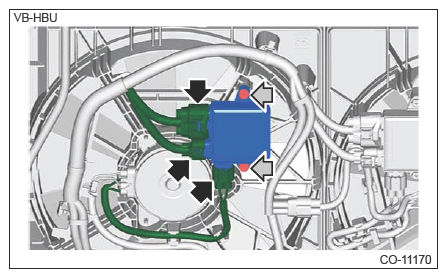

Install the radiator fan control module (main).
Tightening torque:

3.4 N.m (0.3 kgf-m, 2.5 ft-lb)
Connect the connector to radiator fan control module (main).

Courtesy of SUBARU OF AMERICA, INC.
Install the reservoir tank. Ref. to COOLING (H4DOTC)>RESERVOIR TANK>INSTALLATION .
Install the V-belt cover.
NOTE:
- Check the grommet for peel-off or disengagement.
- Be careful not to deform the bracket during installation.
Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
