Steering Wheel: Disassembly

NOTE: The illustration shows the CVT model.

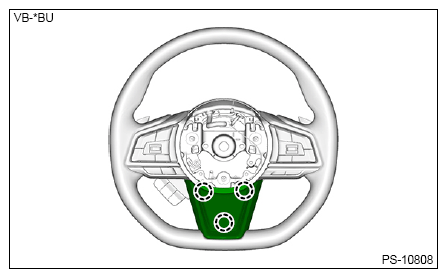

  1. Release the claws, and then remove the cover spoke.
    CAUTION: Be careful not to damage the claws and the cover spoke insertion hole during work.
    G14612010Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the cover steering wheel LWR.

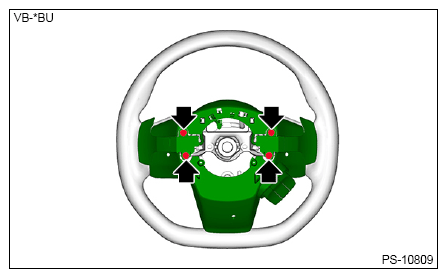

    1. Remove the screws on the back of the steering wheel.
      G14612011Courtesy of SUBARU OF AMERICA, INC.

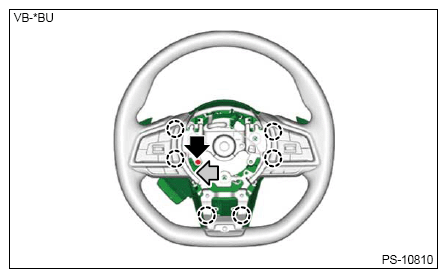

    2. Disconnect the connector.
    3. Release the screws, claws and harness clips, and detach the cover steering wheel LWR.
    G14612012Courtesy of SUBARU OF AMERICA, INC.

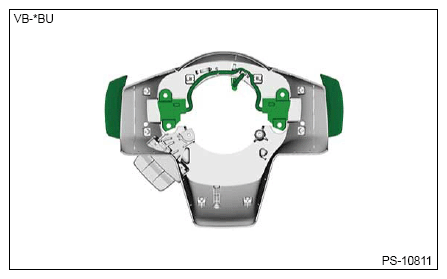

  3. Remove the paddle shift switch assembly. (CVT model)
    G14612013Courtesy of SUBARU OF AMERICA, INC.

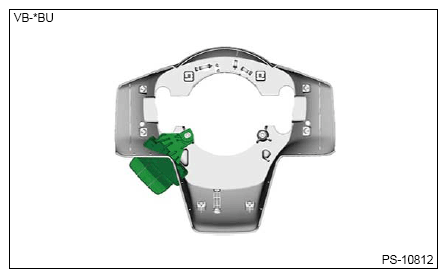

  4. Release the claws, and then remove the switch assembly steering (MID) switch.
    G14612014Courtesy of SUBARU OF AMERICA, INC.

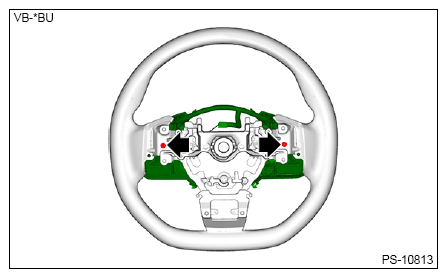

  5. Remove the screws and release the claws, then remove the satellite switch.
    G14612015Courtesy of SUBARU OF AMERICA, INC.
