Transmission Control Module (TCM): Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Move the lock lever (B) in the arrow direction while pressing the lock button (A), and disconnect the connector.

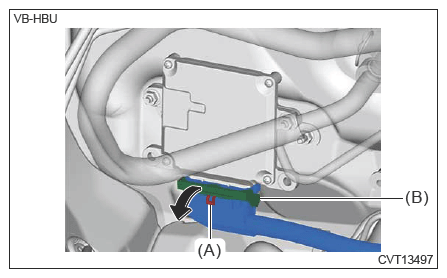

    G14611139Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the TCM.

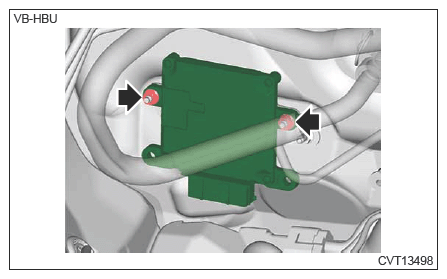

    G14611140Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the bracket.
    NOTE: Perform this procedure only when required.

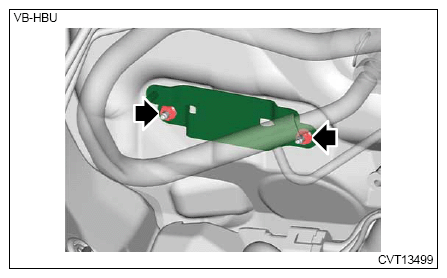

    G14611141Courtesy of SUBARU OF AMERICA, INC.
