Rubber Bushing Front Arm Front

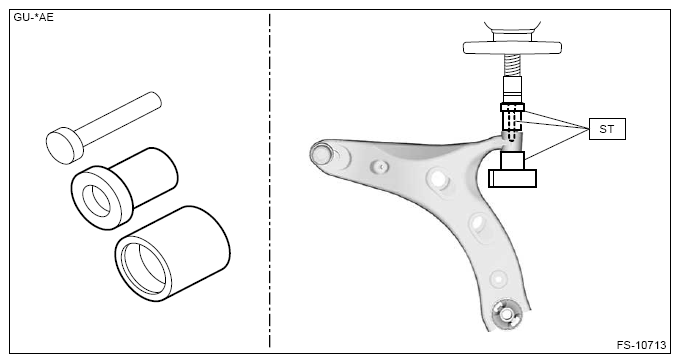

  1. Remove the rubber bushing front arm front using the ST.

    Preparation tool  :

    ST: INSTALLER & REMOVER SET (927680000)

    G16762025Courtesy of SUBARU OF AMERICA, INC.
