CROSSTREK Model

NOTE: Components: Ref. to FRONT SUSPENSION>GENERAL DESCRIPTION>COMPONENT>FRONT SUSPENSION .
  1. Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  2. Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
  3. Remove the crossmember support rear. Ref. to FRONT SUSPENSION>CROSSMEMBER SUPPORT>REMOVAL .
  4. Remove the front arm assembly.
    CAUTION: Be careful not to damage the boot of the ball joint.
    1. Remove the bolt from the front axle housing.
    2. Lower the front arm assembly, and remove the ball joint portion from the front axle housing.

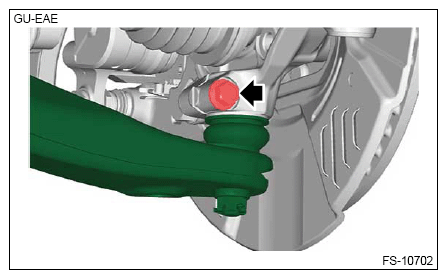

      G16762008Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the nut.
    4. Remove the bolt.
    5. Remove the front arm rear plate.

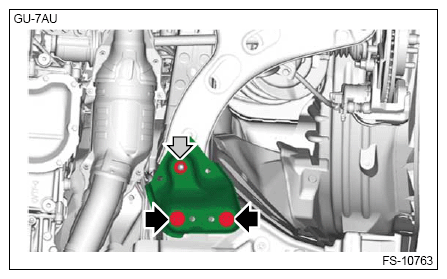

      G16762009Courtesy of SUBARU OF AMERICA, INC.
    6. Remove the bolts and nuts.
    7. Remove the front arm assembly.

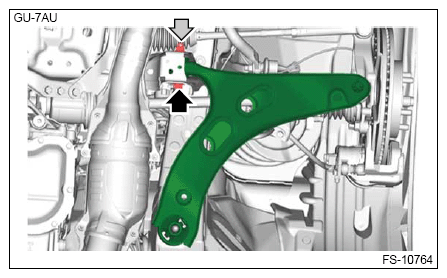

      G16762010Courtesy of SUBARU OF AMERICA, INC.
