IMPREZA Model
 Courtesy of SUBARU OF AMERICA, INC.
|

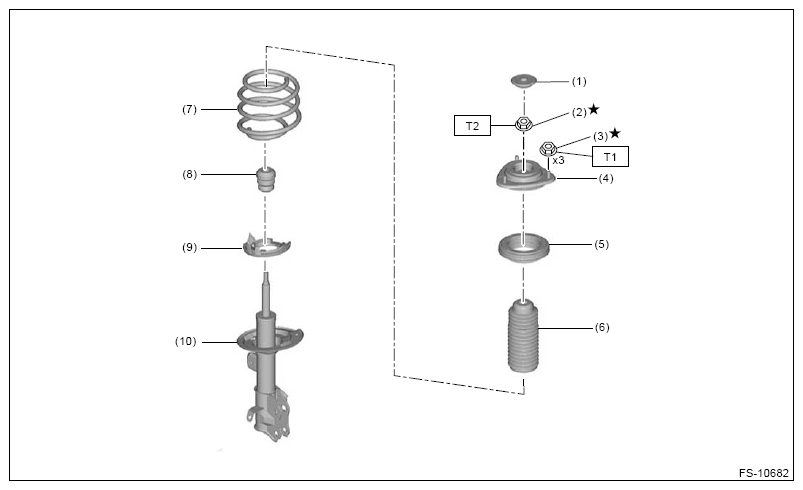

| (1) |
Dust seal |
| (2) |
Self-locking nut |
| (3) |
Flange nut |
| (4) |
Front strut mount |
| (5) |
Front mount bearing |
| (6) |
Front dust cover |
| (7) |
Front coil spring |
| (8) |
Front helper |
| (9) |
LWR ruber seat |
| (10) |
COMPL front strut |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 32 (3.3, 23.6)
T2: 55 (5.6, 40.6)
