Thrust Angle
- Move the vehicle 3 - 4 meters (9.84 - 13.12 ft) straight forward.
- Draw the center of loci for both the front and rear axles.
- Measure distance "L" between the center lines of the axle loci.

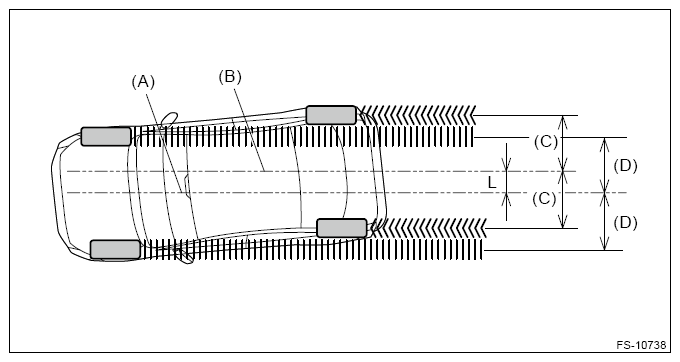

(A) Center line of loci (front axle) (B) Center line of loci (rear axle) (C) Same distance (D) Same distance Thrust angle inspection value 0°±30' NOTE: Less than 30' when "L" is 23 mm (0.91 in) or less.
