Cockpit Display: Disassembly

WARNING: This page is about a different car, the 2023 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center information display.
    1. Remove the screws.
      NOTE: Remove the screws on LH side in the same procedure as on the RH side.
      G16441475Courtesy of SUBARU OF AMERICA, INC.

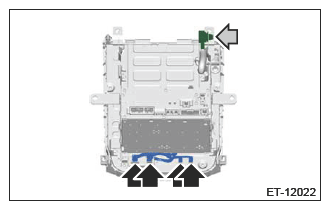

    2. Release the clips and disconnect the connectors, and then remove the center information display.
    G16441476Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the switch hazard. Ref. to LIGHTING SYSTEM>HAZARD SWITCH>REMOVAL .
  3. Disconnect the connectors, and remove the cord assembly.
    G16441477Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the screws and remove the unit bracket from the cockpit control module.
    NOTE: Remove the screws on LH side in the same procedure as on the RH side.
G16441478Courtesy of SUBARU OF AMERICA, INC.
