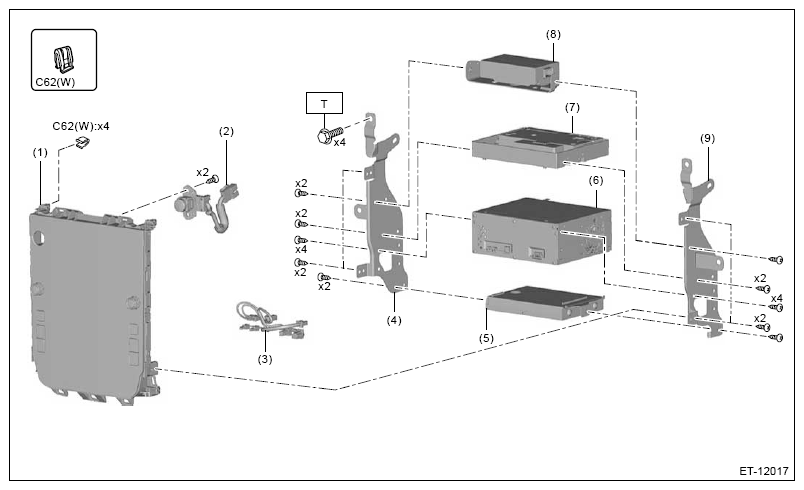

Center Information Display Assembly
WARNING: This page is about a different car, the 2023 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SUBARU OF AMERICA, INC.
| (1) |
Center information display |
| (2) |
Switch hazard |
| (3) |
Cord ASSY CCM |
| (4) |
Unit bracket LH |
| (5) |
Multiview control ASSY |
| (6) |
Cockpit control module |
| (7) |
Data communication module |
| (8) |
Backup unit ASSY |
| (9) |
Unit bracket RH |
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.5 (0.8, 5.5)
