Front ABS Wheel Speed Sensor: Removal

NOTE: Components: Ref. to VEHICLE DYNAMICS CONTROL (VDC)>GENERAL DESCRIPTION>COMPONENT>ABS WHEEL SPEED SENSOR .
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  3. Remove the sensor sub assembly front.
    CAUTION:
    • Be careful not to damage the sensor.
    • Do not apply excessive force to the sensor harness

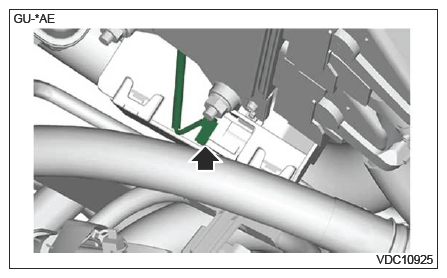

    1. Disconnect the connector.
      G16767244Courtesy of SUBARU OF AMERICA, INC.

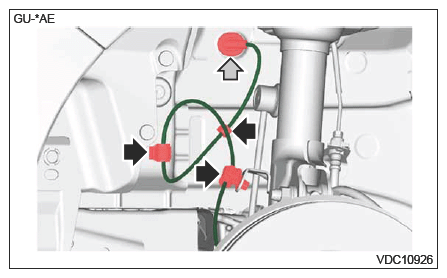

    2. Remove the harness clamp and grommet.
      • 2024MY
        G16767245Courtesy of SUBARU OF AMERICA, INC.

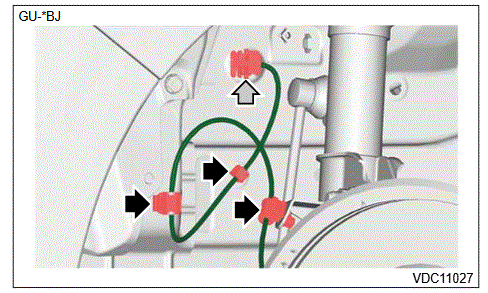

      • 2025MY
        G00659576Courtesy of SUBARU OF AMERICA, INC.

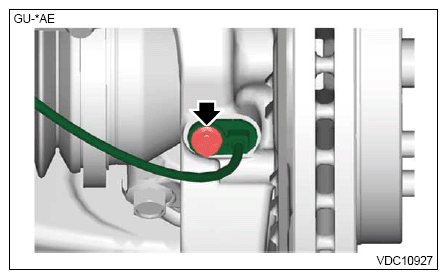

    3. Remove the bolt.
    4. Remove the sensor sub assembly front.
      G16767246Courtesy of SUBARU OF AMERICA, INC.
