Battery Cable Assembly: Removal

NOTE: Components: Ref. to STARTING/CHARGING SYSTEMS (H4DO)>GENERAL DESCRIPTION>COMPONENT>BATTERY CABLE ASSEMBLY .
  1. Remove the cover fender UPR LH.

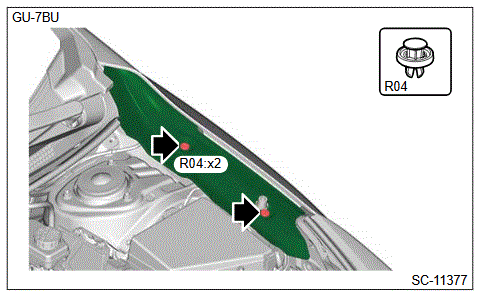

    G00650643Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the fuse box cover (A) and terminal boot (B).

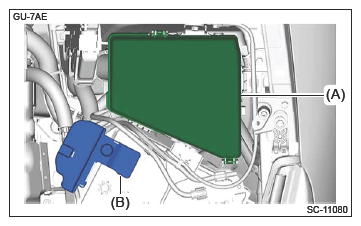

    G16761880Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the battery cable assembly.
    1. Disconnect the ground terminal (A).
    2. Remove the clip (B).
    3. Disconnect the ground terminal (C).
    4. Remove the battery cable holder (D).
    5. Remove the battery sensor harness from the clip (E).
      • VIN:] JF1############## [model and] JF2############## [model

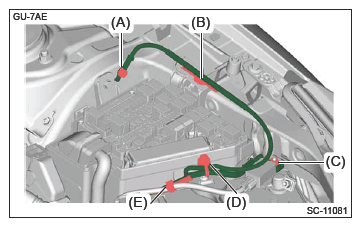

        G16761881Courtesy of SUBARU OF AMERICA, INC.
      • VIN:] 4S4############## [model

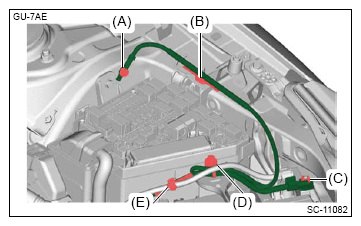

        G16761882Courtesy of SUBARU OF AMERICA, INC.
    6. Disconnect the terminal (A) and the terminal (B).
    7. Disconnect the terminal (C).

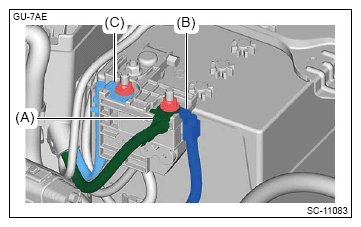

      G16761883Courtesy of SUBARU OF AMERICA, INC.
    8. Disconnect the slow blow fuse.
      G14601657Courtesy of SUBARU OF AMERICA, INC.
    9. Remove the terminal of battery cable assembly.
      G14601658Courtesy of SUBARU OF AMERICA, INC.
    10. Remove the air intake boot.
      1. Remove the clip.
      2. Loosen the clamp.
        G00659598Courtesy of SUBARU OF AMERICA, INC.
      3. Remove the air intake boot, and place it aside so that it does not interfere with the work.
        CAUTION: Be careful not to pull out the PCV hose.
        G16760377Courtesy of SUBARU OF AMERICA, INC.
    11. Disconnect the connector (A).
    12. Disconnect the terminal B (B).
    13. Disconnect the ground terminal (C).
      CAUTION: In order to prevent damaging the ground terminal, fix the ground terminal when loosing the bolt, and avoid the part from rotating together while loosening the bolt.

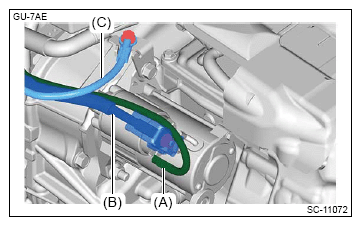

      G16761826Courtesy of SUBARU OF AMERICA, INC.
    14. Remove the V-belt covers.
      G16760387Courtesy of SUBARU OF AMERICA, INC.
    15. Disconnect the terminal B (A).
    16. Remove the connector (B) and connector (C).
    17. Remove the clip (D) and clip (E) that secure the battery cable assembly.
      G16760388Courtesy of SUBARU OF AMERICA, INC.
    18. Disconnect the connector (A).
    19. Remove the clip (B) securing the engine wiring harness.
    20. Remove the clip (C) securing the battery cable assembly to the intake manifold assembly.
    21. Release the claw (D) securing the battery cable assembly to the intake manifold assembly.
      G16760390Courtesy of SUBARU OF AMERICA, INC.
    22. Disengage the claw securing the battery cable assembly to the bracket, and remove the battery cable assembly.
      G16761892Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the slow blow fuse.
    NOTE: Perform this procedure only when required.
    1. Disconnect the terminal (A).
    2. Disconnect the terminal (B), and remove the slow blow fuse (C).

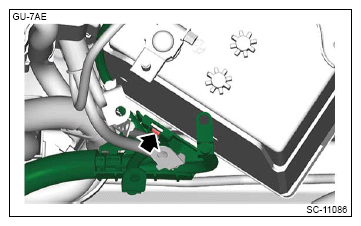

    G14601659Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the terminal base.
    NOTE: Perform this procedure only when required.
    • VIN:] JF1############## [model and] JF2############## [model
      G14601667Courtesy of SUBARU OF AMERICA, INC.
    • VIN:] 4S4############## [model
      G16761895Courtesy of SUBARU OF AMERICA, INC.
