Stator Coil Assembly

NOTE: Perform this inspection for the 2.0 L model only.

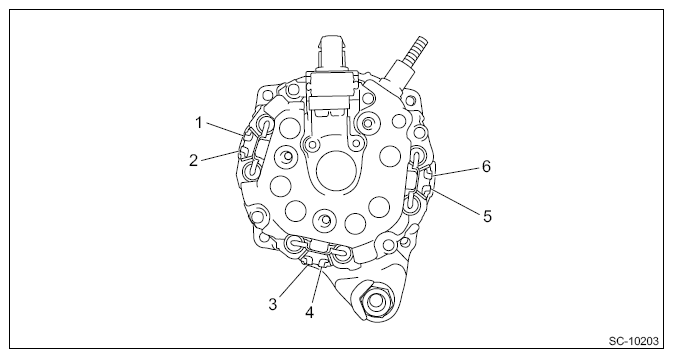

Inspect the continuity between the stator coil terminals. If continuity is not as shown in the table, replace the stator coil assembly.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

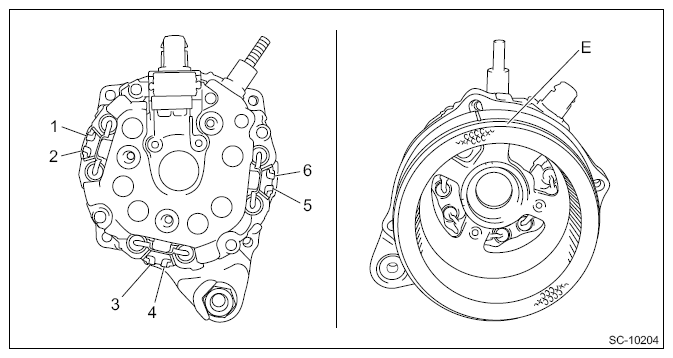

Inspect insulation between the stator coil stator core and lead wire terminals. Replace the stator coil assembly if continuity exists.
