Entertainment System: Antenna: Inspection: Notes
CAUTION:
When wiping dirt off the glass, be careful of the following in order to avoid antenna wire damage.
- Use a dry and soft cloth.
- Move the cloth along the antenna wire.

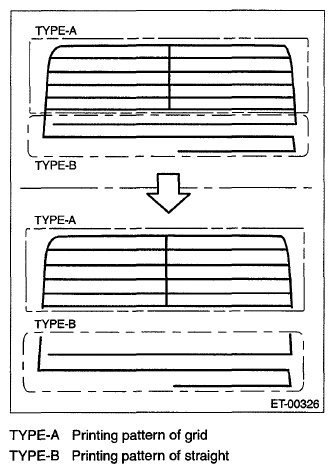

The inspection method of antenna varies depending on printing patterns of antenna.
| TYPE-A Printing pattern of grid |
| TYPE-B Printing pattern of straight |
